PVC UNION - SCH 80 Fittings - Hydroplast (Pvt.) Ltd

uniion

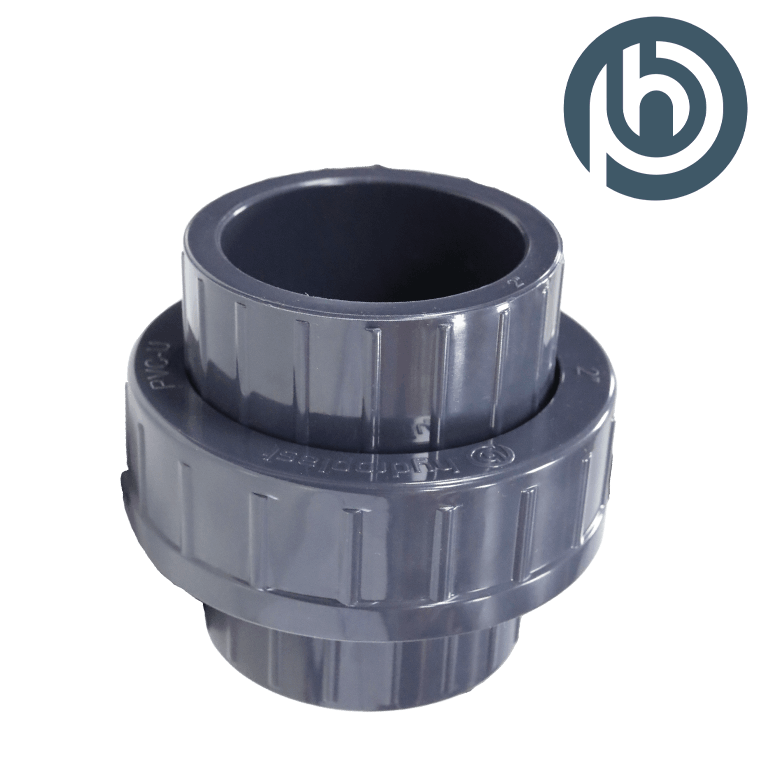

PVC UNION

UNION

General

Material	PVC-U
Production Type	Injection Molding
Connection Type	SxS – SCH 80
Standard	ASTM D-2467

Catalogue Download

Quick info

SKU: DN15 - DN100-1-1-1-2-1-1-1 Category: UPVC FITTINGS Tag: PVC-FITTINGS

Description

1 / 3

PART #	NOMINAL SIZE	UNIT OF MEASURE: MM
		D0	d0	d1	d2	d	T	L
0317GUES0050HP	1/2”	47.00	29.54	21.54	21.23	17.00	23.22	48.20
0317GUES0075HP	3/4”	54.00	35.36	26.87	26.57	22.50	26.40	55.50
0317GUES0100HP	1”	67.00	43.66	33.65	33.27	29.00	29.57	62.10
0317GUES0125HP	1-1/4”	78.50	53.02	42.42	42.04	38.00	32.75	70.00
0317GUES0150HP	1-1/2”	93.00	59.86	48.56	48.11	43.00	35.93	80.00
0317GUES0200HP	2”	110.60	72.23	60.63	60.17	55.00	39.10	90.50
0317GUES0250HP	2-1/2”	130.60	88.00	73.38	72.85	67.50	45.45	104.00
0317GUES0300HP	3”	148.50	105.30	89.31	88.70	83.00	48.63	117.00
0317GUES0400HP	4”	173.50	132.00	114.76	114.07	106.00	58.15	136.60

Caption Text

2 / 3

PART #	NOMINAL SIZE	UNIT OF MEASURE: MM
		D0	d0	d1	d2	d	T	L
0317GUES0050HP	1/2”	47.00	29.54	21.54	21.23	17.00	23.22	48.20
0317GUES0075HP	3/4”	54.00	35.36	26.87	26.57	22.50	26.40	55.50
0317GUES0100HP	1”	67.00	43.66	33.65	33.27	29.00	29.57	62.10
0317GUES0125HP	1-1/4”	78.50	53.02	42.42	42.04	38.00	32.75	70.00
0317GUES0150HP	1-1/2”	93.00	59.86	48.56	48.11	43.00	35.93	80.00
0317GUES0200HP	2”	110.60	72.23	60.63	60.17	55.00	39.10	90.50
0317GUES0250HP	2-1/2”	130.60	88.00	73.38	72.85	67.50	45.45	104.00
0317GUES0300HP	3”	148.50	105.30	89.31	88.70	83.00	48.63	117.00
0317GUES0400HP	4”	173.50	132.00	114.76	114.07	106.00	58.15	136.60

Caption Two

3 / 3

PART #	NOMINAL SIZE	UNIT OF MEASURE: MM
		D0	d0	d1	d2	d	T	L
0317GUES0050HP	1/2”	47.00	29.54	21.54	21.23	17.00	23.22	48.20
0317GUES0075HP	3/4”	54.00	35.36	26.87	26.57	22.50	26.40	55.50
0317GUES0100HP	1”	67.00	43.66	33.65	33.27	29.00	29.57	62.10
0317GUES0125HP	1-1/4”	78.50	53.02	42.42	42.04	38.00	32.75	70.00
0317GUES0150HP	1-1/2”	93.00	59.86	48.56	48.11	43.00	35.93	80.00
0317GUES0200HP	2”	110.60	72.23	60.63	60.17	55.00	39.10	90.50
0317GUES0250HP	2-1/2”	130.60	88.00	73.38	72.85	67.50	45.45	104.00
0317GUES0300HP	3”	148.50	105.30	89.31	88.70	83.00	48.63	117.00
0317GUES0400HP	4”	173.50	132.00	114.76	114.07	106.00	58.15	136.60
